CT452

Contactless Current Sensor

CT452 Features

* User-programmable field range:

* 6 to 24 mT

* Preset magnetic field ranges:

* 0 to 6 mT

* ±6 mT

* Linear analog output voltage

* Common mode field rejection:

* 50 dB

* 1 MHz bandwidth

* Response time:

CT452 General Description

The CT452 is a high-bandwidth and low-noise integrated zero-loss contactless current sensor that uses Allegro patented XtremeSense TMR technology to enable high-accuracy current measurements for many consumer, enterprise, and industrial applications. It supports two field ranges where the CT452 sens.

CT452 Datasheet (1.62 MB)

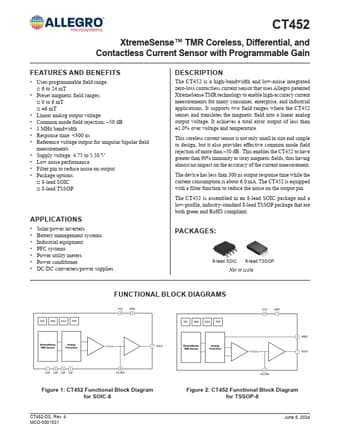

Preview of CT452 PDF

Datasheet Details

Part number:

CT452

Manufacturer:

Allegro

File Size:

1.62 MB

Description:

Contactless current sensor.
