CT4504 1Mbit/s High Speed Optocoupler

📥 Download Datasheet  Datasheet Preview Page 1

Description

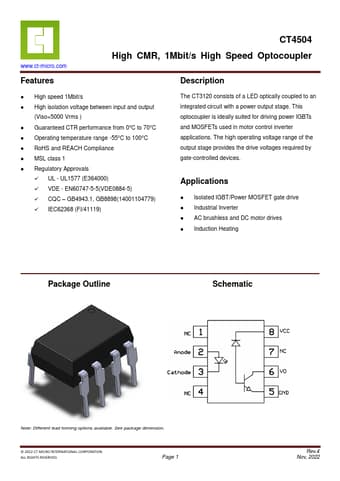

CT4504 www.ct-micro.com High CMR, 1Mbit/s High Speed Optocoupler .
High speed 1Mbit/s. High isolation voltage between input and output (Viso=5000 Vrms ). Guaranteed CTR performance from 0°C to 70°C.

📥 Download Datasheet

Preview of CT4504 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
CT4504
Manufacturer
CT Micro
File Size
2.22 MB
Datasheet
CT4504-CTMicro.pdf
Description
1Mbit/s High Speed Optocoupler

Applications

* The high operating voltage range of the output stage provides the drive voltages required by gate-controlled devices. Applications
* Isolated IGBT/Power MOSFET gate drive
* Industrial Inverter
* AC brushless and DC motor drives
* Induction Heating Package Outline Schematic Note:
