CTH2503NS-T52, N-Channel MOSFET

CTH2503NS-T52 N-Channel Enhancement MOSFET .
The CTH2503NS-T52 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

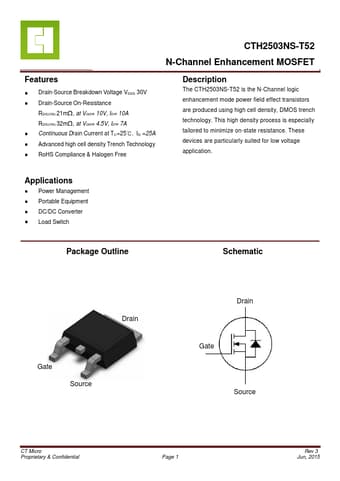

datasheet Preview Page 1 from Datasheet4u.com

CTH2503NS-T52-CTMicro.pdf

CTH2503NS-T52 Datasheet Preview — Preview of CTH2503NS-T52 PDF

Datasheet Details

Part number:

CTH2503NS-T52

Manufacturer:

CT Micro

File Size:

1.02 MB

Description:

N-Channel MOSFET

Features

* Drain-Source Breakdown Voltage VDSS 30V
* Drain-Source On-Resistance RDS(ON) 21m, at VGS= 10V, ID= 10A RDS(ON) 32m, at VGS= 4.5V, ID= 7A
* Continuous Drain Current at TC=25℃, ID =25A
* Advanced high cell density Trench Technology

Applications

* Power Management
* Portable Equipment
* DC/DC Converter
* Load Switch Package Outline Schematic Drain Gate Source Drain Gate Source CT Micro Proprietary & Confidential Page 1 Rev 3 Jun, 2015 CTH2503NS-T52 N-Channel Enhancement MOSFET Absolute Maximum Rating at 25oC Symb
