HIRC2808Q12-B20 Datasheet - CT Micro

HIRC2808Q12-B20 Infrared Emitter

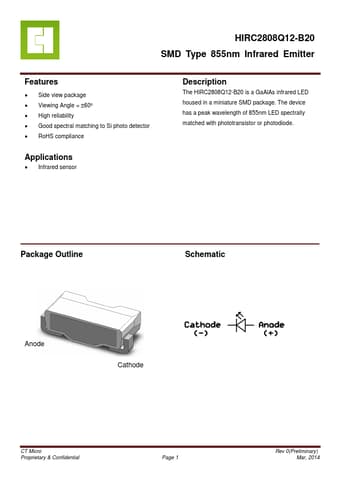

The HIRC2808Q12-B20 is a GaAlAs infrared LED housed in a miniature SMD package. The device has a peak wavelength of 855nm LED spectrally matched with phototransistor or photodiode. Package Outline Schematic Anode Cathode CT Micro Proprietary & Confidential Page 1 Rev 0(Preliminary) Mar, 2014 .

HIRC2808Q12-B20-CTMicro.pdf

Preview of HIRC2808Q12-B20 PDF
HIRC2808Q12-B20 Datasheet Preview Page 2 HIRC2808Q12-B20 Datasheet Preview Page 3

Datasheet Details

Part number:

HIRC2808Q12-B20

Manufacturer:

CT Micro

File Size:

766.21 KB

Description:

Infrared emitter.
