HIRP1608Q09-G0

SMD Type 850nm Infrared Emitter

CT Micro

HIRP1608Q09-G0 Features

* Small double-end package

* Viewing Angle = 300

* High reliability

* Good spectral matching to Si photo detector

* RoHS compliance Applications

* Infrared sensor Description The HIRP1608Q09-G0 is a GaAlAs infrared LED housed in a miniature SMD package. The device has a pea

HIRP1608Q09-G0 General Description

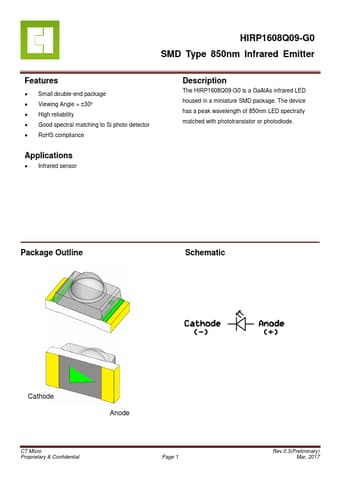

The HIRP1608Q09-G0 is a GaAlAs infrared LED housed in a miniature SMD package. The device has a peak wavelength of 850nm LED spectrally matched with phototransistor or photodiode. Package Outline Schematic Cathode Anode CT Micro Proprietary & Confidential Page 1 Rev 0.3(Preliminary) Mar, 2017.

HIRP1608Q09-G0 Datasheet (866.75 KB)

HIRP1608Q09-G0 Datasheet Preview — Preview of HIRP1608Q09-G0 PDF

Datasheet Details

Part number:

HIRP1608Q09-G0

Manufacturer:

CT Micro

File Size:

866.75 KB

Description:

Smd type 850nm infrared emitter.
