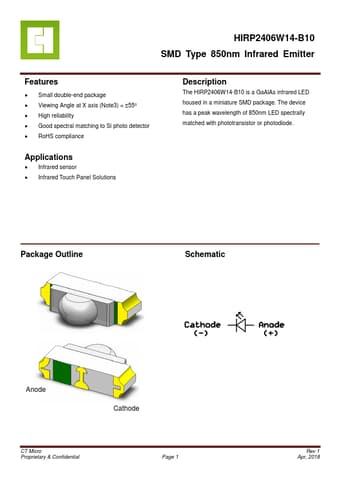

HIRP2406W14-B10 Datasheet, Emitter, CT Micro

HIRP2406W14-B10 Features

• Emitter
• Small double-end package
• Viewing Angle at X axis (Note3) = 550
• High reliability
• Good spectral matching to Si photo detector
• RoHS compl

PDF File Details

Part number:

HIRP2406W14-B10

Manufacturer:

CT Micro

File Size:

958.53kb

Download:

📄 Datasheet

Description:

Infrared emitter. The HIRP2406W14-B10 is a GaAlAs infrared LED housed in a miniature SMD package. The device has a peak wavelength of 850nm LED spectra

HIRP2406W14-B10 Application

• Applications
• Infrared sensor
• Infrared Touch Panel Solutions Description The HIRP2406W14-B10 is a GaAlAs infrared LED housed in
