HIRP2013X10-B40

Infrared Emitter

HIRP2013X10-B40 Features

* Small double-end package

* Viewing Angle= 700

* High reliability

* Good spectral matching to Si photo detector

* RoHS compliance Applications

* Infrared sensor Description The HIRP2013X10-B40 is a GaAlAs infrared LED housed in a miniature SMD package. The device has a pea

HIRP2013X10-B40 General Description

The HIRP2013X10-B40 is a GaAlAs infrared LED housed in a miniature SMD package. The device has a peak wavelength of 850nm LED spectrally matched with phototransistor or photodiode. Package Outline Schematic Anode CT Micro Proprietary & Confidential Cathode Page 1 Rev 1 Dec, 2018 HIRP2013X10-B4.

HIRP2013X10-B40 Datasheet (782.81 KB)

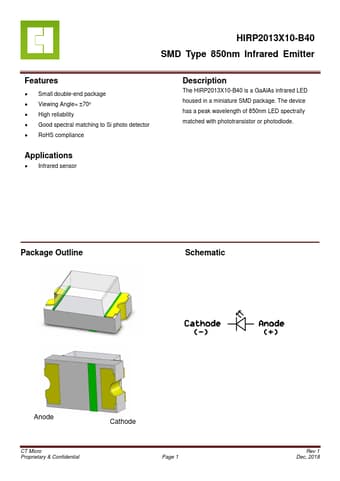

Preview of HIRP2013X10-B40 PDF

Datasheet Details

Part number:

HIRP2013X10-B40

Manufacturer:

CT Micro

File Size:

782.81 KB

Description:

Infrared emitter.
