HIRP1608XC09-H5

Infrared Emitter

HIRP1608XC09-H5 Features

* Small double-end package

* Viewing Angle = 37.50

* High reliability

* Good spectral matching to Si photo detector

* RoHS compliance Applications

* Infrared sensor Description The HIRP1608XC09-H5 is a GaAlAs infrared LED housed in a miniature SMD package. The device has a

HIRP1608XC09-H5 General Description

The HIRP1608XC09-H5 is a GaAlAs infrared LED housed in a miniature SMD package. The device has a peak wavelength of 800nm LED spectrally matched with phototransistor or photodiode. Package Outline Schematic Cathode Anode CT Micro Proprietary & Confidential Page 1 Rev 0 (Preliminary) Oct, 2017.

HIRP1608XC09-H5 Datasheet (813.23 KB)

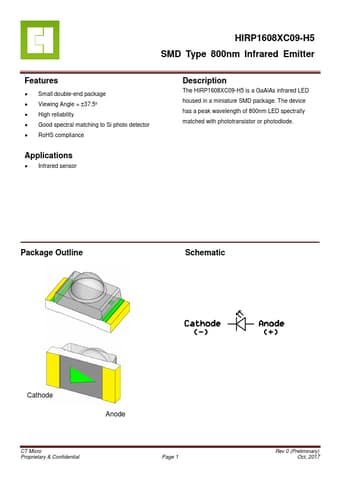

Preview of HIRP1608XC09-H5 PDF

Datasheet Details

Part number:

HIRP1608XC09-H5

Manufacturer:

CT Micro

File Size:

813.23 KB

Description:

Infrared emitter.
