WP160806-ATC4

SMD Type White Emitter

WP160806-ATC4 Features

* Small double-end package

* Viewing Angle = 650

* Compatible with infrared and vapor phase reflow solder process

* High reliability

* Pure White

* RoHS compliance Applications

* Optical indicator.

* Switch and Symbol Display. WP16080

WP160806-ATC4 General Description

The WP160806-ATC4 is an AllnGaN White LED housed in a miniature SMD package. Static electricity and surge damage the LEDs. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. Package Outline Schematic Anode Cathode CT Micro Proprietary & Confidential Page .

WP160806-ATC4 Datasheet (785.02 KB)

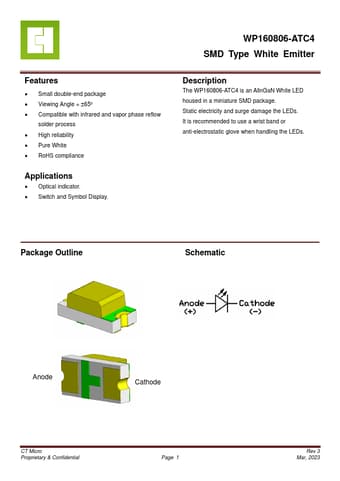

Preview of WP160806-ATC4 PDF

Datasheet Details

Part number:

WP160806-ATC4

Manufacturer:

CT Micro

File Size:

785.02 KB

Description:

Smd type white emitter.
