RS5MC, RS5AC - Surface Mount Fast Recovery Rectifiers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS5MC, RS5AC. Please refer to the document for exact specifications by model.

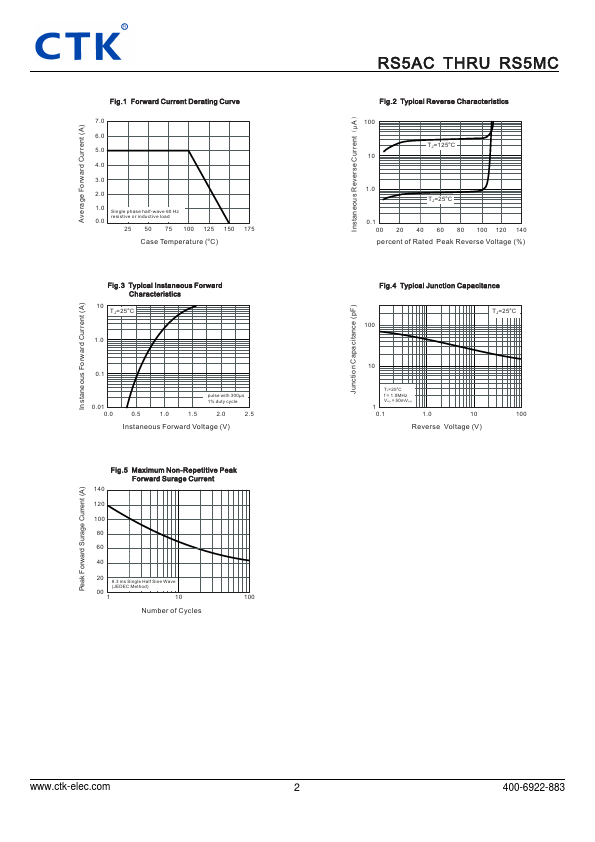

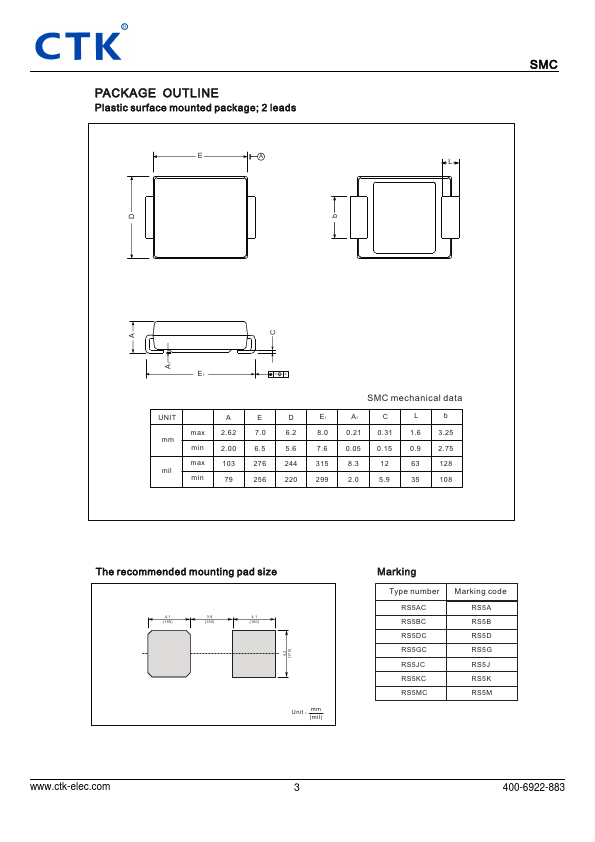

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number RS5MC, RS5AC
Manufacturer CTK
File Size 241.63 KB
Description Surface Mount Fast Recovery Rectifiers
Datasheet download datasheet RS5AC-CTK.pdf
Note This datasheet PDF includes multiple part numbers: RS5MC, RS5AC.
Please refer to the document for exact specifications by model.

RS5MC Product details

Description

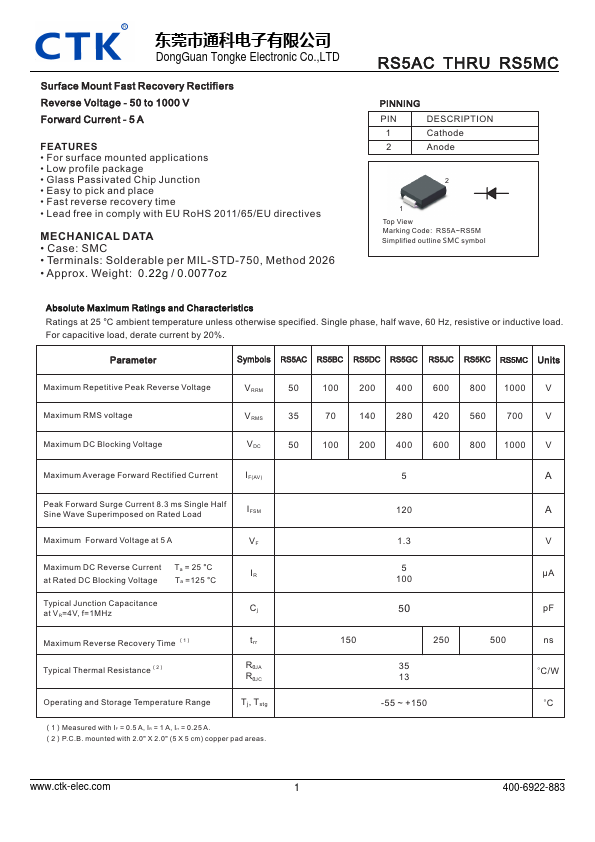

1 Cathode 2 Anode 2 1 Top View Marking Code: RS5A~RS5M Simplified outline SMC symbol Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60 Hz, resistive or inductive load.For capacitive load, derate current by 20%.Parameter Symbols RS5AC RS5BC RS5DC RS5GC RS5JC RS5KC RS5MC Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420
