Description
1
Cathode
2
Anode
1
2

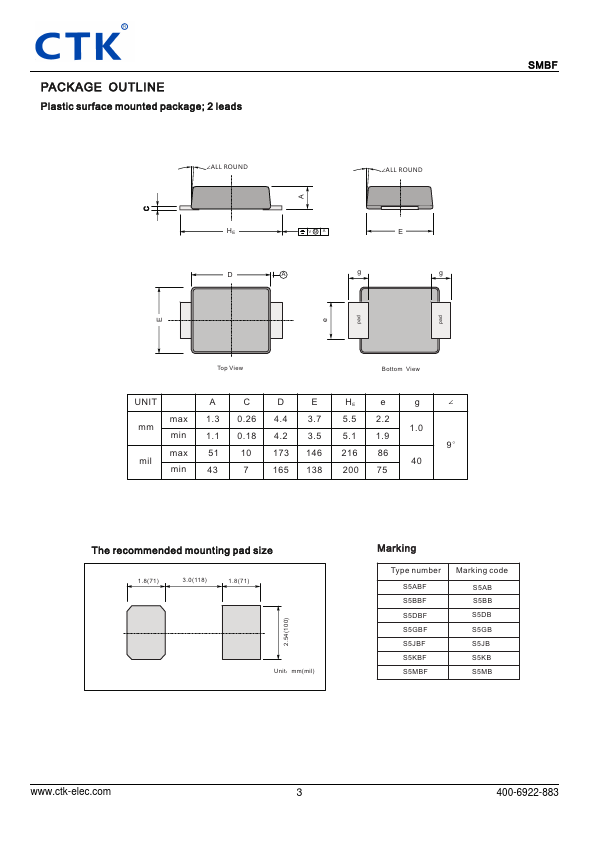

Top View Marking Code： S5AB-S5MB Simplified outline SMBF and symbol

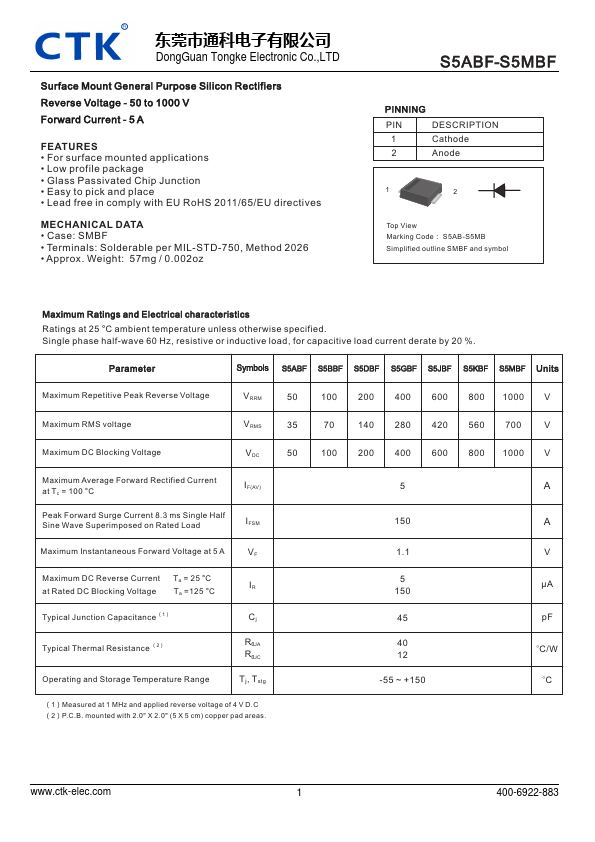

Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.Parameter
Symbols S5ABF S5BBF S5DBF S5GBF S5JBF S5KBF S5MBF Units
Maximum Repetitive Peak Reverse Voltage
VRRM
50 100 200 400 600 800 1000 V
Maximum RMS voltage
VRMS
35
70 140 28
Features
