S5MBF Surface Mount General Purpose Silicon Rectifiers

Description

DongGuan Tongke Electronic Co.,LTD Surface Mount General Purpose Silicon Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 5 A .
1 Cathode 2 Anode 1 2 Top View Marking Code： S5AB-S5MB Simplified outline SMBF and symbol Maximum Ratings and Electrical characteristics Ratin.

📥 Download Datasheet

S5MBF Datasheet Preview — Preview of S5MBF PDF

Datasheet Specifications

Part number: S5MBF
Manufacturer: CTK
File Size: 232.88 KB
Datasheet: S5MBF-CTK.pdf
Description: Surface Mount General Purpose Silicon Rectifiers

Applications

* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place
* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA

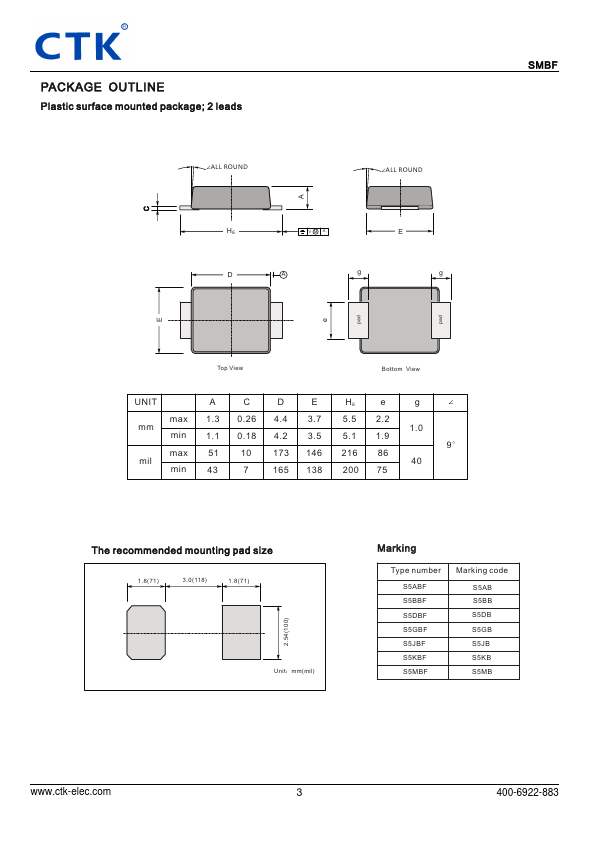

* Case: SMBF
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. Weight: 57mg /
