VCP3003A - Frequency Translator

Datasheet Summary

Description

and applications: Surface mount 15.9 mm SQ frequency translator operating at a 3.3V supply with complementary LVPECL outputs for use in telecom & datacom

See WWW.CTSCORP.COM for product patent status.

Features

  • 622.08 MHz SAW-based LVPECL output RoHS Compliant Low Profile Surface Mount Package Excellent solder reflow performance PCB Substrate for excellent TCE match.
  • www. DataSheet4U. com.

📥 Download Datasheet

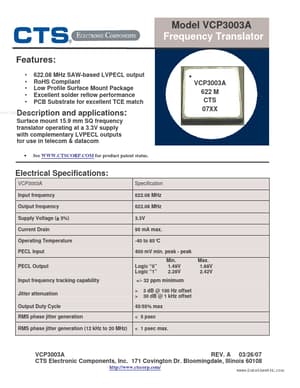

Datasheet preview – VCP3003A

Datasheet Details

Part number VCP3003A
Manufacturer CTS
File Size 219.06 KB
Description Frequency Translator
Datasheet download datasheet VCP3003A Datasheet
Additional preview pages of the VCP3003A datasheet.

📁 Similar Datasheet

  • VCP32AXT - 3.3V SMD LV-PECL OSCILLATOR (Fox Electronics)
  • VCP35AXT - 3.3V SMD LV-PECL OSCILLATOR (Fox Electronics)
  • VCP1615 - Linear position sensor (VTran Tech)
  • VCP62AXT - 3.3V SMD LV-PECL OSCILLATOR (Fox Electronics)
  • VCP65AXT - 3.3V SMD LV-PECL OSCILLATOR (Fox Electronics)
Other Datasheets by CTS

Full PDF Text Transcription

Click to expand full text
Model VCP3003A Frequency Translator Features: • • • • • 622.08 MHz SAW-based LVPECL output RoHS Compliant Low Profile Surface Mount Package Excellent solder reflow performance PCB Substrate for excellent TCE match • www.DataSheet4U.com Description and applications: Surface mount 15.9 mm SQ frequency translator operating at a 3.3V supply with complementary LVPECL outputs for use in telecom & datacom • VCP3003A 622 M CTS 07XX See WWW.CTSCORP.COM for product patent status. Electrical Specifications: VCP3003A Input frequency Output frequency Supply Voltage (± 5%) Current Drain Operating Temperature PECL Input PECL Output Input frequency tracking capability Jitter attenuation Output Duty Cycle RMS phase jitter generation RMS phase jitter generation (12 kHz to 20 MHz) Specification 622.
