VCP3007B - Frequency Translator

Datasheet Summary

Description

and applications: Surface mount 15.9 mm SQ frequency translator operating at a 3.3V supply with complementary LVPECL outputs for use in telecom & datacom

See WWW.CTSCORP.COM for product patent status.

Features

  • 622.08 MHz SAW-based LVPECL output RoHS Compliant Low Profile Surface Mount Package Excellent solder reflow performance PCB Substrate for excellent TCE match.
  • VCP3007B 622 M CTS 07XX www. DataSheet4U. com.

📥 Download Datasheet

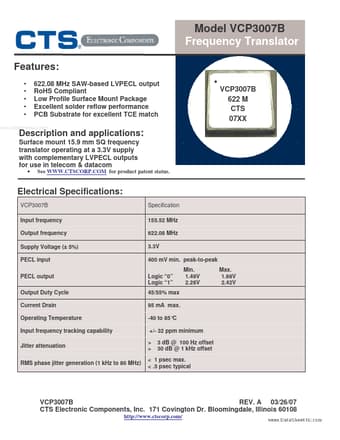

Datasheet preview – VCP3007B

Datasheet Details

Part number VCP3007B
Manufacturer CTS
File Size 222.86 KB
Description Frequency Translator
Datasheet download datasheet VCP3007B Datasheet
Additional preview pages of the VCP3007B datasheet.

📁 Similar Datasheet

  • VCP32AXT - 3.3V SMD LV-PECL OSCILLATOR (Fox Electronics)
  • VCP35AXT - 3.3V SMD LV-PECL OSCILLATOR (Fox Electronics)
  • VCP1615 - Linear position sensor (VTran Tech)
  • VCP62AXT - 3.3V SMD LV-PECL OSCILLATOR (Fox Electronics)
  • VCP65AXT - 3.3V SMD LV-PECL OSCILLATOR (Fox Electronics)
Other Datasheets by CTS

Full PDF Text Transcription

Click to expand full text
Model VCP3007B Frequency Translator Features: • • • • • 622.08 MHz SAW-based LVPECL output RoHS Compliant Low Profile Surface Mount Package Excellent solder reflow performance PCB Substrate for excellent TCE match • VCP3007B 622 M CTS 07XX www.DataSheet4U.com Description and applications: Surface mount 15.9 mm SQ frequency translator operating at a 3.3V supply with complementary LVPECL outputs for use in telecom & datacom • See WWW.CTSCORP.COM for product patent status. Electrical Specifications: VCP3007B Input frequency Output frequency Supply Voltage (± 5%) PECL input PECL output Output Duty Cycle Current Drain Operating Temperature Input frequency tracking capability Jitter attenuation RMS phase jitter generation (1 kHz to 80 MHz) Specification 155.52 MHz 622.08 MHz 3.
