VCP3020A Frequency Translator

VCP3020A Description

Model VCP3020A Frequency Translator .
and applications: Surface mount 15.

VCP3020A Features

* 155.52 MHz SAW-based PECL output RoHS Compliant Low Profile Surface Mount Package Excellent solder reflow performance PCB Substrate for excellent TCE match

VCP3020A Applications

* Surface mount 15.9 mm SQ frequency translator operating at a 3.3V supply with complementary PECL outputs for use in telecom & datacom applications
* VCP3020A 155 M CTS 07XX See WWW. CTSCORP. COM for product patent status. Electrical Specifications: VCP3020A Input frequency Output frequency

📥 Download Datasheet

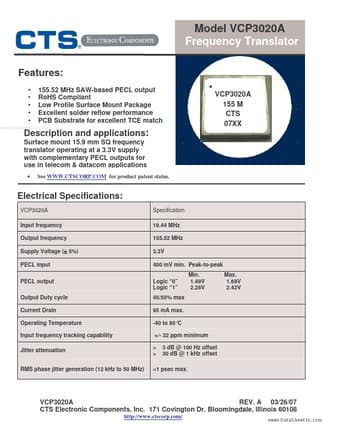

Preview of VCP3020A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VCP3020A
Manufacturer
CTS
File Size
222.77 KB
Datasheet
VCP3020A_CTS.pdf
Description
Frequency Translator
