VCS1026 622.080MHz VCSO

Surface mount 5x7mm VCSO operating at 3.3V supply with complementary LVPECL outputs for use in datacom & telecom applications. ELECTRICAL SPECIFICATIONS Parameter Operating Conditions Nominal Frequency Operating Temperature Range Storage Temperature Range Supply Voltage Supply Current Load VCC; ±5% .

VCS1026 Features

* Industry Standard 5x7mm SMT Footprint

* +3.3 Vdc Supply Voltage

* -40°C to 85°C Temp. Range

* LVPECL differential outputs

* ± 50ppm Absolute Pull Range (APR)

* Output Enable/Disable Function

* SAW resonator

* Extremely Low Jitter

VCS1026 Datasheet (352.60 KB)

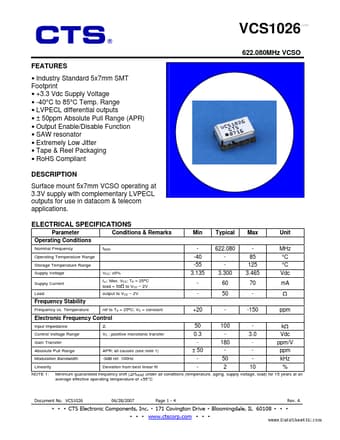

VCS1026 Datasheet Preview — Preview of VCS1026 PDF

Datasheet Details

Part number:

VCS1026

Manufacturer:

CTS

File Size:

352.60 KB

Description:

622.080mhz vcso.
