VCS103, VCS101 Datasheet - Vishay Siliconix

VCS103, VCS101, (VCSx0x) Current Sense/Current Shunt Resistors

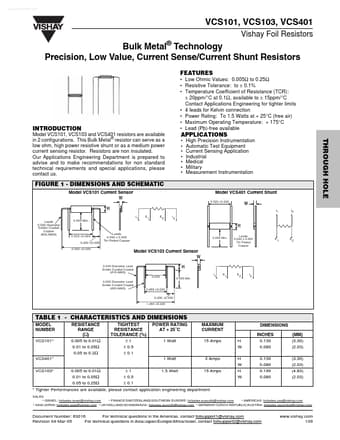

www.DataSheet4U.com VCS101, VCS103, VCS401 Vishay Foil Resistors Bulk Metal® Technology Precision, Low Value, Current Sense/Current Shunt Resistors .

datasheet Preview Page 1 from Datasheet4u.com

VCS101_VishaySiliconix.pdf

VCS103 Datasheet Preview — This datasheet PDF includes multiple part numbers: VCS103, VCS101. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VCS103, VCS101

Manufacturer:

Vishay ↗ Siliconix

File Size:

104.71 KB

Description:

(VCSx0x) Current Sense/Current Shunt Resistors

Note:

This datasheet PDF includes multiple part numbers: VCS103, VCS101.
Please refer to the document for exact specifications by model.

Features

* Low Ohmic Values: 0.005Ω to 0.25Ω
* Resistive Tolerance: to ± 0.1%

Applications

* Engineering for tighter limits
* 4 leads for Kelvin connection
* Power Rating: To 1.5 Watts at + 25°C (free air)
* Maximum Operating Temperature: + 175°C
* Lead (Pb)-free available INTRODUCTION Model VCS101, VCS103 and VCS401 resistors are available in 2 configuratio
