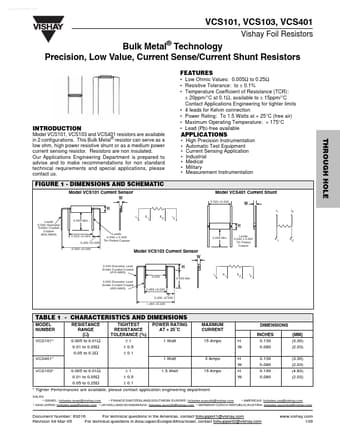

VCS101 Datasheet, Resistors, Vishay Siliconix

✔ VCS101 Features

Low Ohmic Values: 0.005Ω to 0.25Ω
Resistive Tolerance: to ± 0.1%
Temperature Coefficient of Resistance (TCR): ± 20ppm/°C at 0.1Ω, available to ± 15ppm/°C Contact Ap

✔ VCS101 Application

Engineering for tighter limits
4 leads for Kelvin connection
Power Rating: To 1.5 Watts at + 25°C (free

PDF File Details

Vishay Siliconix manufacturer logo

Part number:

VCS101

Manufacturer:

Vishay ↗ Siliconix

File Size:

104.71kb

Download:

📄 Datasheet

Description:

(vcsx0x) current sense/current shunt resistors.

📥 Download PDF (104.71kb)

📁 Related Datasheet

VCS1001A - PCB Substrate (CTS Corporation)
.. Model VCS1001A VCSO Features: • 622.08 MHz VCSO • Low Profile Surface Mount Package • Excellent solder reflow performance • PCB S.

VCS1003A - PCB Substrate (CTS Corporation)
.. Model VCS1003A VCSO Features: • 622.08 MHz VCSO • Low Profile Surface Mount Package • Excellent solder reflow performance • PCB S.

VCS1026 - 622.080MHz VCSO (CTS)
VCS1026 FEATURES • Industry Standard 5x7mm SMT Footprint • +3.3 Vdc Supply Voltage • -40°C to 85°C Temp. Range • LVPECL differential outputs • ± 50ppm.

VCS103 - (VCSx0x) Current Sense/Current Shunt Resistors (Vishay Siliconix)
.. VCS101, VCS103, VCS401 Vishay Foil Resistors Bulk Metal® Technology Precision, Low Value, Current Sense/Current Shunt Resistors .
