4953 Dual P-Channel MOSFET

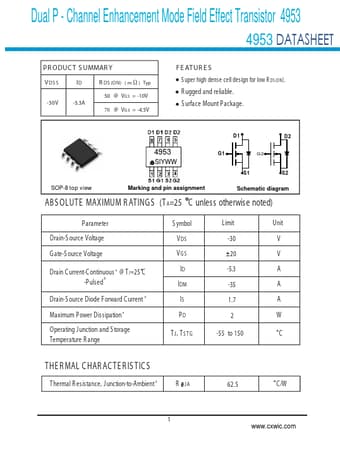

Dual P - Channel Enhancement Mode Field Effect Transistor 4953 4953 DATASHEET P R ODUC T S UMMAR Y VDS S -30V ID -5.3A R DS (ON) ( m Ω ) Typ 50 @ VG S = -10V 70 @ VG S = -4.5V F E AT UR E S S uper high dense cell design for low R DS(ON). R ugged and reliable. S urface Mount P ackage. D1 D2 4953 SIYWW G1 G2 S1 S2 SOP-8 top view Marking and pin assignment Schematic diagram ABS OLUTE MAXIMUM R ATINGS (TA=25 C unless otherwise noted) P arameter Drain-S ource Voltage Gate-S ource Voltage.
