BAV23A, BAV23, High voltage switching (double) diodes

CYStech Electronics Corp.High voltage switching (double) diodes BAV23/A/C/SN3 Spec.No.: C335N3 Issued Date : 2016.05.09 Revised Date : Page No.: .
High voltage switching diodes encapsulated in a SOT-23 small plastic SMD package.

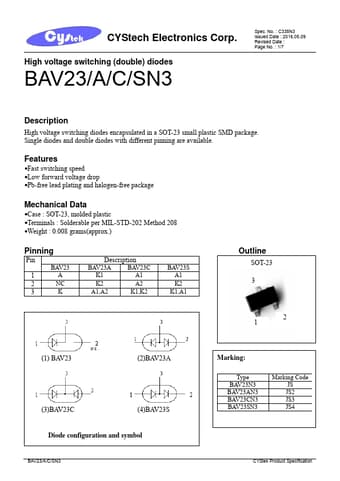

datasheet Preview Page 1 from Datasheet4u.com

BAV23-CYStechElectronics.pdf

BAV23A Datasheet Preview — This datasheet PDF includes multiple part numbers: BAV23A, BAV23. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BAV23A, BAV23

Manufacturer:

CYStech Electronics

File Size:

289.43 KB

Description:

High voltage switching (double) diodes

Note:

This datasheet PDF includes multiple part numbers: BAV23A, BAV23.
Please refer to the document for exact specifications by model.

Features

* Fast switching speed
* Low forward voltage drop
* Pb-free lead plating and halogen-free package Mechanical Data
* Case : SOT-23, molded plastic
* Terminals : Solderable per MIL-STD-202 Method 208
* Weight : 0.008 grams(approx. ) Pinning Pin BAV23 1A 2 NC
