BAV23C, BAV23 Dual high-voltage switching diodes

BAV23C Description

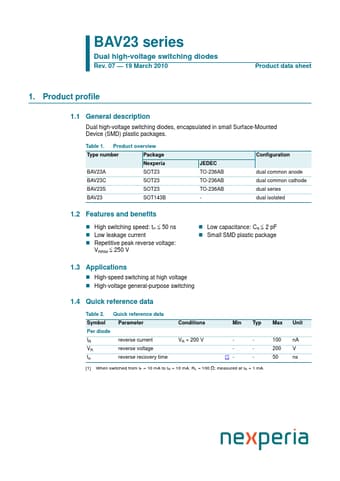

BAV23 series Dual high-voltage switching diodes Rev.07 * 19 March 2010 Product data sheet 1.Product profile 1.1 General .
Dual high-voltage switching diodes, encapsulated in small Surface-Mounted Device (SMD) plastic packages.

BAV23C Features

* High switching speed: trr  50 ns
* Low leakage current
* Repetitive peak reverse voltage: VRRM  250 V
* Low capacitance: Cd  2 pF

BAV23C Applications

* High-speed switching at high voltage
* High-voltage general-purpose switching 1.4 Quick reference data Table 2. Quick reference data Symbol Parameter Per diode IR reverse current VR reverse voltage trr reverse recovery time Conditions VR = 200 V Min Typ [1] - - [1] When switched fro
