BAV103, BAV102 Single general-purpose switching diodes

BAV103 Description

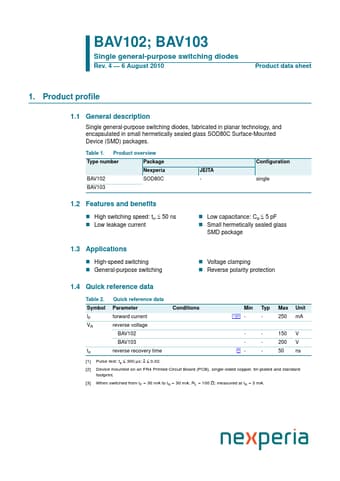

BAV102; BAV103 Single general-purpose switching diodes Rev.4 * 6 August 2010 Product data sheet 1.Product profile 1.1 General .
Single general-purpose switching diodes, fabricated in planar technology, and encapsulated in small hermetically sealed glass SOD80C Surface-Mounted D.

BAV103 Features

* High switching speed: trr ≤ 50 ns
* Low leakage current
* Low capacitance: Cd ≤ 5 pF

BAV103 Applications

* High-speed switching
* General-purpose switching
* Voltage clamping
* Reverse polarity protection 1.4 Quick reference data Table 2. Symbol IF VR trr Quick reference data Parameter forward current reverse voltage BAV102 BAV103 reverse recovery time Conditions M
