BAV199 Low-leakage double diode

BAV199 Description

BAV199 Low-leakage double diode 1 April 2023 Product data sheet 1.General .
Epitaxial, medium-speed switching, double diode in a small SOT23 Surface-Mounted Device (SMD) plastic package.

BAV199 Features

* Plastic SMD package
* Low leakage current: typ. 3 pA
* Switching time: typ. 0.8 us
* Continuous reverse voltage: max. 75 V
* Repetitive peak reverse voltage: max. 85 V

BAV199 Applications

* Low-leakage current applications in surface mounted circuits. 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per diode VR reverse voltage IR reverse current Conditions VR = 75 V; Tj = 150 °C Min Typ Max Unit - - 75 V - 3 80 nA 5. Pinning informat

📥 Download Datasheet

Preview of BAV199 PDF

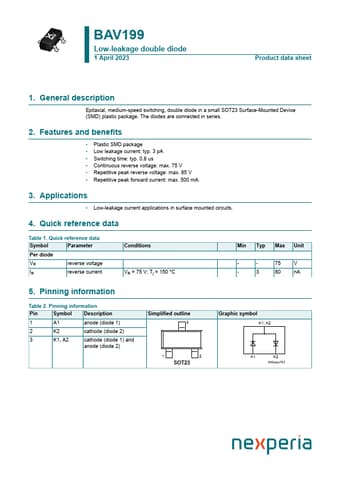

datasheet Preview Page 2 datasheet Preview Page 3
