BAV170, Low-leakage double diode

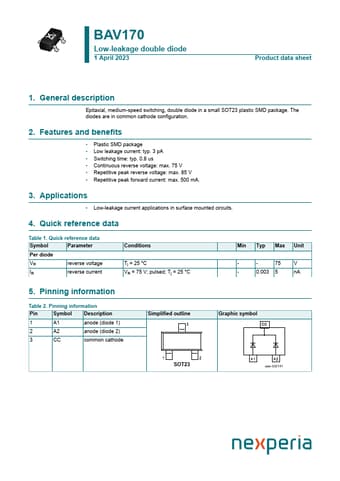

BAV170 Low-leakage double diode 1 April 2023 Product data sheet 1.General .
Epitaxial, medium-speed switching, double diode in a small SOT23 plastic SMD package.

datasheet Preview Page 1 from Datasheet4u.com

BAV170-nexperia.pdf

BAV170 Datasheet Preview — Preview of BAV170 PDF

Datasheet Details

Part number:

BAV170

Manufacturer:

nexperia ↗

File Size:

646.34 KB

Description:

Low-leakage double diode

Features

* Plastic SMD package
* Low leakage current: typ. 3 pA
* Switching time: typ. 0.8 us
* Continuous reverse voltage: max. 75 V
* Repetitive peak reverse voltage: max. 85 V

Applications

* Low-leakage current applications in surface mounted circuits. 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per diode VR reverse voltage IR reverse current Conditions Tj = 25 °C VR = 75 V; pulsed; Tj = 25 °C Min Typ Max Unit - - 75 V - 0.003 5 nA
