BAV170W

The BAV170W is LOW LEAKAGE SWITCHING DIODES designed by Pan Jit International.

Product Overview

Pan Jit International

📥 Download Datasheet

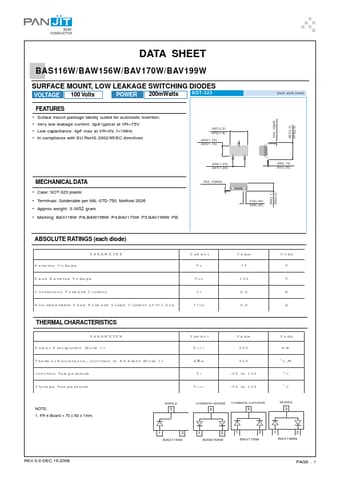

BAV170W LOW LEAKAGE SWITCHING DIODES by Pan Jit International - Datasheet Preview — Datasheet preview – BAV170W

Datasheet Details

Part number	BAV170W
Manufacturer	Pan Jit International
File Size	134.34 KB
Description	LOW LEAKAGE SWITCHING DIODES
Datasheet	BAV170W-PanJitInternational.pdf
Additional preview pages of the BAV170W datasheet.

Product details

Features

Suface mount package ideally suited for automatic insertion.
Very low leakage current. 2pA typical at VR=75V.
Low capacitance. 4pF max at VR=0V, f=1MHz.
In compliance with EU RoHS 2002/95/EC directives .087(2.2) .070(1.8) .054(1.35) .045(1.15).
