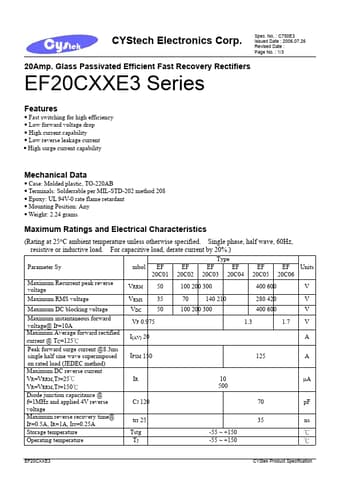

EF20C05E3, EF20CXXE3 - 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers

CYStech Electronics

Datasheet Details

Part number	EF20C05E3, EF20CXXE3
Manufacturer	CYStech Electronics
File Size	252.49 KB
Description	20Amp. Glass Passivated Efficient Fast Recovery Rectifiers
Datasheet	EF20CXXE3-CYStechElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: EF20C05E3, EF20CXXE3. Please refer to the document for exact specifications by model.

Mechanical Data.
Case: Molded plastic, TO-220AB.
Terminals: Solderrable per MIL-STD-202 method 208.
Epoxy: UL 94V-0 rate flame retardant.
Mounting Position: Any.
Weight: 2.24 grams Maximum Ratings and Electrical Characteristics (Rating at 25°C ambient temperature unless otherwise specified. resistive or inductive load. Single phase, half wave, 60Hz, For capacitive load, derate current by 20%. ) mbol VRRM VRMS VDC VF 0.975 I(AV) 20 IFSM 150 125 EF.
