MBR10120FP - Schottky Barrier Rectifiers

MBR10120FP Description

CYStech Electronics Corp.Spec.No.: C467FP Issued Date : 2009.03.19 Revised Date : 2009.10.23 Page No.: 1/4 10Amp.Schottky Barrier Rectifiers MB.

MBR10120FP Features

* 175℃ operating junction temperature
* Low VF and low IR type
* Metal silicon junction, major carrier conduction
* 10A total (5A per diode leg)
* Guardring for over voltage protection
* Low power loss, high efficiency
* High surge capability

📥 Download Datasheet

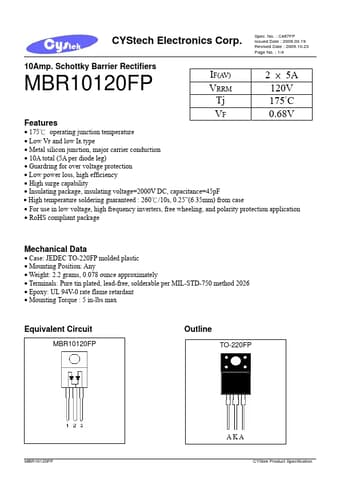

Preview of MBR10120FP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR10120FP
Manufacturer
CYStech Electronics
File Size
122.46 KB
Datasheet
MBR10120FP-CYStechElectronics.pdf
Description
Schottky Barrier Rectifiers
