Description

CYStech Electronics Corp.Surface Mount Zener Diodes VZ : 3.3 to 330V PD=1W SMA4728A thru SZ1330A Spec.No.: C604SA Issued Date : 2016.09.05 Revised.

📥 Download Datasheet

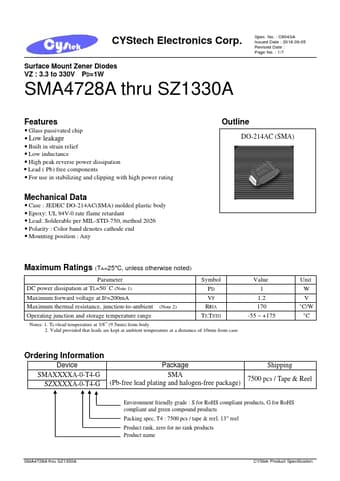

SZ1220A Datasheet Preview — This datasheet PDF includes multiple part numbers: SZ1220A, SZ1110A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SZ1220A, SZ1110A
Manufacturer: CYStech Electronics
File Size: 410.33 KB
Datasheet: SZ1110A-CYStechElectronics.pdf
Description: Surface Mount Zener Diodes
Note: This datasheet PDF includes multiple part numbers: SZ1220A, SZ1110A.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip
* Low leakage
* Built in strain relief
* Low inductance
* High peak reverse power dissipation
* Lead ( Pb) free components
* For use in stabilizing and clipping with high power rating Mechanical Data
* Case : JEDEC DO-214AC(SMA) molded plastic
