SZ1240A, SZ1110A - Surface Mount Zener Diodes

CYStech Electronics

The SZ1240A by CYStech Electronics is a Surface Mount Zener Diodes. Below is the official datasheet preview.

📥 Download Datasheet

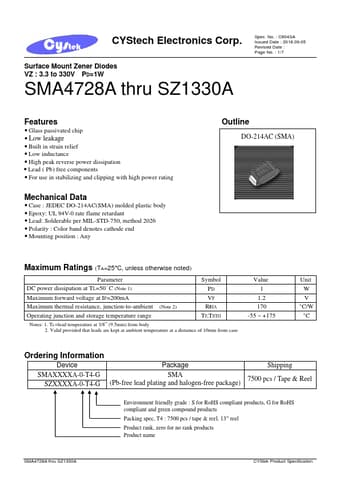

SZ1240A Surface Mount Zener Diodes by CYStech Electronics - Datasheet Preview — Official preview page of the SZ1240A Surface Mount Zener Diodes datasheet (CYStech Electronics).

Datasheet Details

Part number	SZ1240A, SZ1110A
Manufacturer	CYStech Electronics
File Size	410.33 KB
Description	Surface Mount Zener Diodes
Datasheet	SZ1110A-CYStechElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SZ1240A, SZ1110A. Please refer to the document for exact specifications by model.
Additional preview pages of the SZ1240A datasheet.

SZ1240A Product details

Features

Glass passivated chip.
Low leakage.
Built in strain relief.
Low inductance.
High peak reverse power dissipation.
Lead ( Pb) free components.
For use in stabilizing and clipping with high power rating Mechanical Data.
Case : JEDEC DO-214AC(SMA) molded plastic body.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Solderable per MIL-STD-750, method 2026.
Polarity : Color band denotes cathode end.
Mounting position : Any Outline DO-214AC (SMA.
