BTC2655S3 - General Purpose NPN Epitaxial Planar Transistor

BTC2655S3 Description

CYStech Electronics Corp.Spec.No.: C602S3 Issued Date : 2012.04.12 Revised Date : 2016.07.18 Page No.: 1/8 General Purpose NPN Epitaxial Planar .

BTC2655S3 Features

* High breakdown voltage, BVCEO≥ 50V
* Large continuous collector current capability
* Low collector saturation voltage
* Pb-free lead plating package Symbol BTC2655S3 Outline SOT-323 B：Base C：Collector E：Emitter Ordering Information Device BTC2655S3-0-T1-G Packa

📥 Download Datasheet

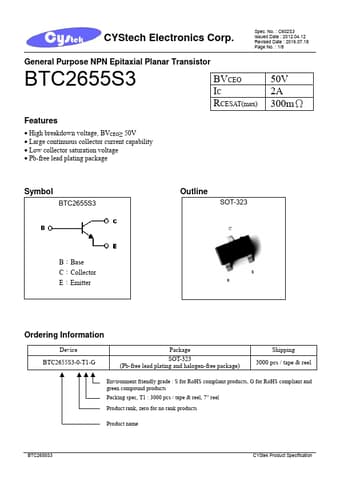

Preview of BTC2655S3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BTC2655S3
Manufacturer
CYStech
File Size
250.27 KB
Datasheet
BTC2655S3-CYStech.pdf
Description
General Purpose NPN Epitaxial Planar Transistor
