BTC9013A3 - General Purpose NPN Epitaxial Planar Transistor

📥 Download Datasheet

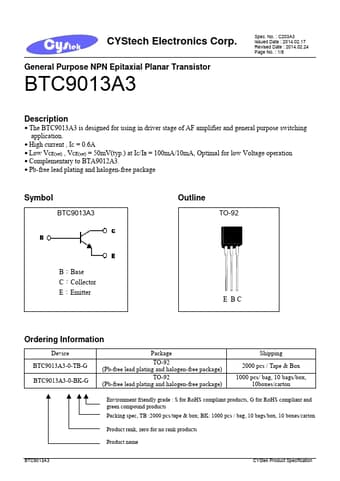

Preview of BTC9013A3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number BTC9013A3
Manufacturer CYStech
File Size 319.48 KB
Description General Purpose NPN Epitaxial Planar Transistor
Datasheet download datasheet BTC9013A3-CYStech.pdf

BTC9013A3 Product details

Description

The BTC9013A3 is designed for using in driver stage of AF amplifier and general purpose switching application. High current , IC = 0.6A Low VCE(sat) , VCE(sat) = 50mV(typ.) at IC/IB = 100mA/10mA, Optimal for low Voltage operation Complementary to BTA9012A3. Pb-free lead plating and halogen-free package Symbol BTC9013A3 Outline TO-92 B：Base C：Collector E：Emitter E BC Ordering Information Device BTC9013A3-0-TB-G BTC9013A3-0-BK-G Package TO-
