BTC1664M3 - Low Vcesat NPN Epitaxial Planar Transistor

Product Overview

CYStech

Part number	BTC1664M3
Manufacturer	CYStech
File Size	201.79 KB
Description	Low Vcesat NPN Epitaxial Planar Transistor
Datasheet	BTC1664M3 Datasheet

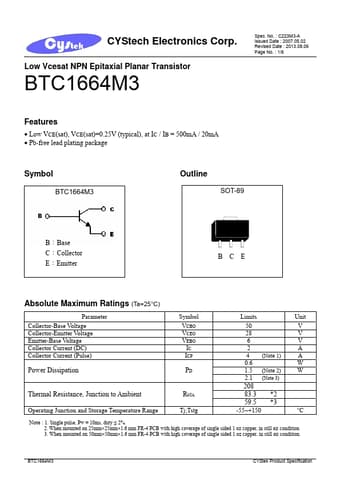

Additional preview pages of the BTC1664M3 datasheet.

Low VCE(sat), VCE(sat)=0.25V (typical), at IC / IB = 500mA / 20mA.
Pb-free lead plating package Symbol BTC1664M3 Outline SOT-89 B：Base C：Collector E：Emitter BCE Absolute Maximum Ratings (Ta=25°C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Power Dissipation Thermal Resistance, Junction to Ambient Operating Junction and Storage Temperature Range Symbol VCBO VCEO VEBO IC ICP PD RθJA Tj;T.
