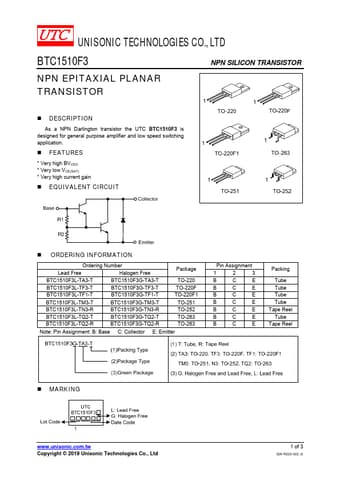

BTC1510F3 Datasheet, Transistor, UTC

BTC1510F3 Features

• Transistor
• Very high BVCEO
• Very low VCE(SAT)
• Very high current gain
• EQUIVALENT CIRCUIT
• ORDERING INFORMATION Ordering Number Lead Free Halogen

PDF File Details

Part number:

BTC1510F3

Manufacturer:

UTC

File Size:

207.70kb

Download:

📄 Datasheet

Description:

Npn transistor. As a NPN Darlington transistor the UTC BTC1510F3 is designed for general purpose amplifier and low speed switching application.
