BTC12-400, BTC12-200 Datasheet - Digitron

BTC12-400 SILICON BIDIRECTIONAL THYRISTORS

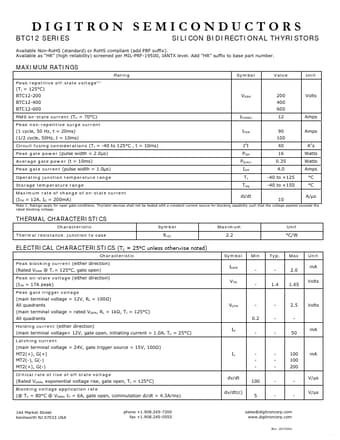

DIGITRON SEMICONDUCTORS BTC12 SERIES SILICON BIDIRECTIONAL THYRISTORS Available Non-RoHS (standard) or RoHS compliant (add PBF suffix). Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number. MAXIMUM RATINGS Rating Peak repetitive off-state voltage (TJ = 125°C) BTC12-200 BTC12-400 BTC12-600 (1) Symbol Value Unit VDRM 200 400 600 12 90 100 40 16 0.35 4.0 -40 to +125 -40 to +150 10 Volts RMS on-state current (TC = 70°C) Peak non-re.

BTC12-200-Digitron.pdf

This datasheet PDF includes multiple part numbers: BTC12-400, BTC12-200. Please refer to the document for exact specifications by model.
BTC12-400 Datasheet Preview Page 2 BTC12-400 Datasheet Preview Page 3

Datasheet Details

Part number:

BTC12-400, BTC12-200

Manufacturer:

Digitron

File Size:

680.23 KB

Description:

Silicon bidirectional thyristors.

Note:

This datasheet PDF includes multiple part numbers: BTC12-400, BTC12-200.
Please refer to the document for exact specifications by model.
