BTC1510J3 - NPN Epitaxial Planar Transistor

BTC1510J3 Description

www.DataSheet4U.com CYStech Electronics Corp.NPN Epitaxial Planar Transistor Spec.No.: C652J3 Issued Date : 2003.05.16 Revised Date :2005.03.11 P.
The BTC1510J3 is a NPN Darlington transistor, designed for general purpose amplifier and low speed switching application. High B.

BTC1510J3 Features

* High BVCEO
* Low VCE(SAT)
* High current gain
* Monolithic construction with built-in base-emitter shunt resistors
* TO-252 surface mount package
* Pb-free package Equivalent Circuit BTC1510J3 C B R1≈8k R2≈120 Outline TO-252 B：Base C：Collector E

BTC1510J3 Applications

* or systems.
* CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance. BTC1510J3 CYStek Product Specification

📥 Download Datasheet

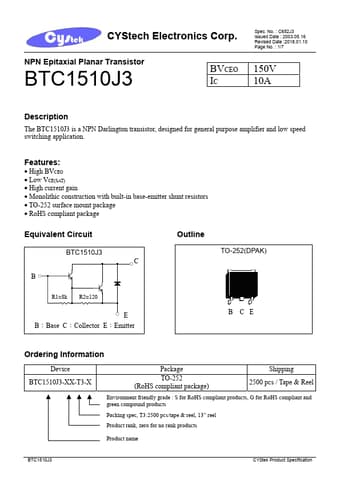

Preview of BTC1510J3 PDF
