BTC9014A3 - General Purpose NPN Epitaxial Planar Transistor

📥 Download Datasheet

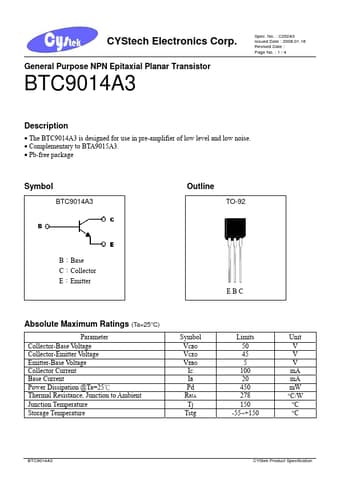

Preview of BTC9014A3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number BTC9014A3
Manufacturer CYStech
File Size 143.47 KB
Description General Purpose NPN Epitaxial Planar Transistor
Datasheet download datasheet BTC9014A3-CYStech.pdf

BTC9014A3 Product details

Description

The BTC9014A3 is designed for use in pre-amplifier of low level and low noise. Complementary to BTA9015A3. Pb-free package Symbol BTC9014A3 Outline TO-92 B：Base C：Collector E：Emitter EBC Absolute Maximum Ratings (Ta=25°C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Power Dissipation @Ta=25℃ Thermal Resistance, Junction to Ambient Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC
