DTA114ES3 - PNP Digital Transistors

Product Overview

CYStech

📥 Download Datasheet

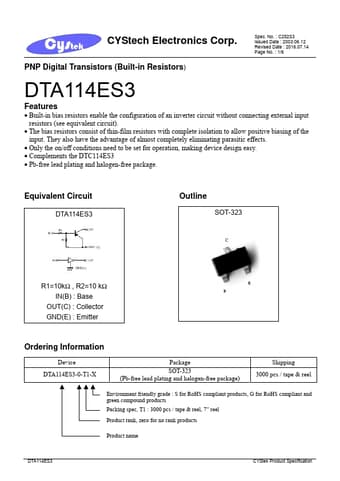

DTA114ES3 PNP Digital Transistors by CYStech - Datasheet Preview — Datasheet preview – DTA114ES3

Datasheet Details

Part number	DTA114ES3
Manufacturer	CYStech
File Size	273.10 KB
Description	PNP Digital Transistors
Datasheet	DTA114ES3 Datasheet
Additional preview pages of the DTA114ES3 datasheet.

Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
Complements the DTC114ES3.
Pb-.
