DTA144ES3 - General Purpose PNP Digital Transistors

CYStech

📥 Download Datasheet

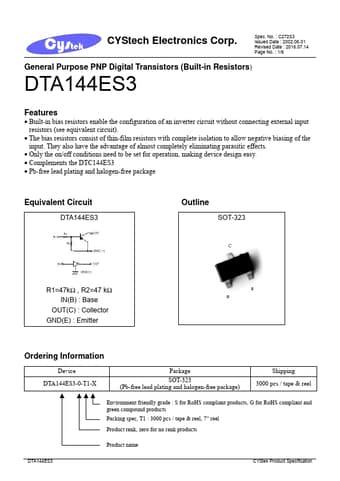

DTA144ES3 Datasheet Preview — Preview of DTA144ES3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: DTA144ES3
Manufacturer: CYStech
File Size: 241.59 KB
Datasheet: DTA144ES3-CYStech.pdf
Description: General Purpose PNP Digital Transistors

DTA144ES3 Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
Complements the DTC144ES3.
Pb-.
