DTA144ESA, DTA144EM - PNP Digital Transistor

JCST

📥 Download Datasheet

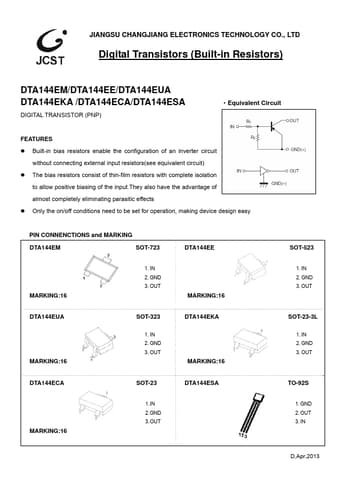

DTA144ESA Datasheet Preview — This datasheet PDF includes multiple part numbers: DTA144ESA, DTA144EM. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: DTA144ESA, DTA144EM
Manufacturer: JCST
File Size: 408.56 KB
Datasheet: DTA144EM-JCST.pdf
Description: PNP Digital Transistor
Note: This datasheet PDF includes multiple part numbers: DTA144ESA, DTA144EM.
Please refer to the document for exact specifications by model.

DTA144ESA Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy PIN.
