DTA144TCA, DTA144TM - PNP Digital Transistor

JCST

📥 Download Datasheet

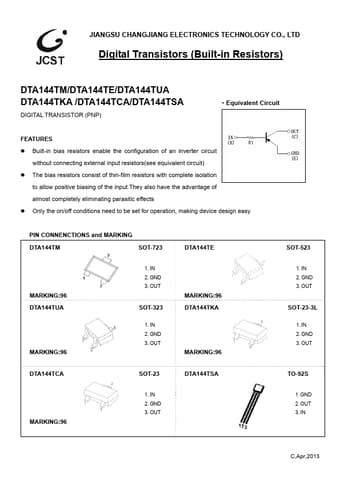

DTA144TCA Datasheet Preview — This datasheet PDF includes multiple part numbers: DTA144TCA, DTA144TM. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: DTA144TCA, DTA144TM
Manufacturer: JCST
File Size: 455.17 KB
Datasheet: DTA144TM-JCST.pdf
Description: PNP Digital Transistor
Note: This datasheet PDF includes multiple part numbers: DTA144TCA, DTA144TM.
Please refer to the document for exact specifications by model.

DTA144TCA Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy PIN.
