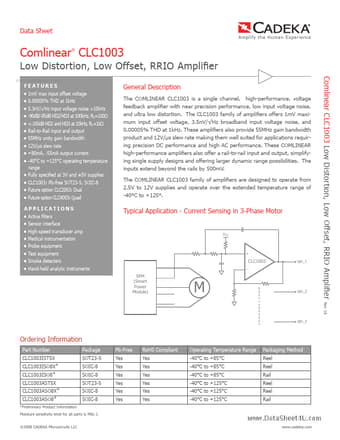

CLC1003 Datasheet, Amplifier, Cadeka

CLC1003 Features

• Amplifier n 1mV max input offset voltage n 0.00005% THD at 1kHz n 5.3nV/√Hz input voltage noise >10kHz n -90dB/-85dB HD2/HD3 at 100kHz, RL=100Ω n <-100dB HD2 and HD3 at 10kHz, RL=1kΩ n Rail

PDF File Details

Part number:

CLC1003

Manufacturer:

Cadeka

File Size:

2.13MB

Download:

📄 Datasheet

Description:

Rrio amplifier. The COMLINEAR CLC1003 is a single channel, high-performance, voltage feedback amplifier with near precision performance, low input vo

CLC1003 Application

• Applications n Active filters n Sensor interface n High-speed transducer amp n Medical instrumentation n Probe equipment n Test equipment n S
