CLC1006 - 500MHz Voltage Feedback Amplifier

Description

The COMLINEAR CLC1006 is a high-performance, voltage feedback amplifier that offers bandwidth and slew rate usually found in current feedback amplifiers.

Features

n 500MHz -3dB bandwidth at G=2 n 1,400V/μs slew rate n 0.02%/0.05˚ diff. gain/phase error n 300MHz large signal bandwidth n 5.5mA supply current n 5nV/√Hz input voltage noise n 100mA output current n Stable for gains ≥ 2 n Fully specified at 5V and ±5V supplies n CLC1006: Pb-free SOT23-5 and SOIC8.

Cadeka

📥 Download Datasheet

Datasheet Details

Part number	CLC1006
Manufacturer	Cadeka
File Size	2.07 MB
Description	500MHz Voltage Feedback Amplifier
Datasheet	CLC1006 Datasheet

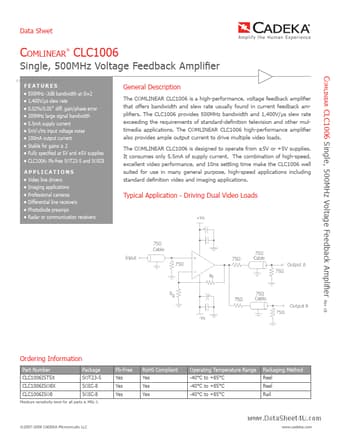

Additional preview pages of the CLC1006 datasheet.
