PS9513L2, PS9513 1Mbps OPEN COLLECTOR OUTPUT

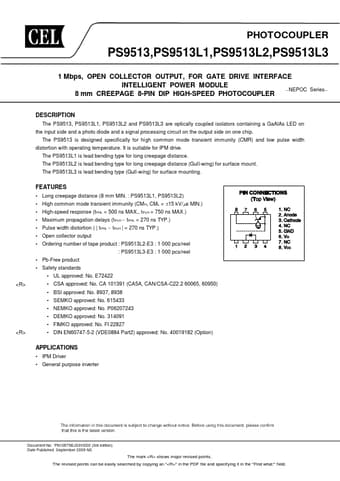

📥 Download Datasheet  Datasheet Preview Page 1

Description

PHOTOCOUPLER PS9513,PS9513L1,PS9513L2,PS9513L3 1 Mbps, OPEN COLLECTOR OUTPUT, FOR GATE DRIVE INTERFACE INTELLIGENT POWER MODULE NEPOC 8 mm CREEPAGE 8.
The PS9513, PS9513L1, PS9513L2 and PS9513L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal p.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PS9513L2, PS9513. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PS9513L2, PS9513
Manufacturer
California Eastern Labs
File Size
1.02 MB
Datasheet
PS9513-CaliforniaEasternLabs.pdf
Description
1Mbps OPEN COLLECTOR OUTPUT
Note
This datasheet PDF includes multiple part numbers: PS9513L2, PS9513.
Please refer to the document for exact specifications by model.

Features

* Long creepage distance (8 mm MIN. : PS9513L1, PS9513L2)
* High common mode transient immunity (CM H, CML = 15 kV/ s MIN. )
* High-speed response (tPHL = 500 ns MAX. , tPLH = 750 ns MAX. )
* Maximum propagation delays (t PLH
* Pulse width distortion ( | tPHL

Applications

* IPM Driver
* General purpose inverter Document No. PN10679EJ03V0DS (3rd edition) Date Published September 2009 NS The mark shows major revised points. The revised points can be easily searched by copying an "" in the PDF file and specifying it in the "Find what:" field. P
