PS9506L2, PS9506 - PHOTOCOUPLER

PS9506L2 Description

Preliminary Data Sheet PS9506,PS9506L1,PS9506L2,PS9506L3 0.6 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 8-PIN DIP PHOTOCOUPLER R08DS0018EJ0100 Re.
The PS9506, PS9506L1, PS9506L2 and PS9506L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode, a signal proc.

PS9506L2 Features

* Long creepage distance (8 mm MIN. : PS9506L1, PS9506L2)
* Peak output current (0.6 A MAX. , 0.4 A MIN. )
* High speed switching (tPLH, tPHL = 0.4 μs MAX. )
* High common mode transient immunity (CMH, CML = ±25 kV/μs MIN. )
* Embossed tape product : PS9506L2-E3, P

PS9506L2 Applications

* IGBT, Power MOS FET Gate Driver
* Industrial inverter
* IH (Induction Heating) The mark shows major revised points. The revised points can be easily searched by copying an "" in the PDF file and specifying it in the "Find what:" field. R08DS0018EJ0100 Rev.1.00 Nov

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PS9506L2, PS9506. Please refer to the document for exact specifications by model.

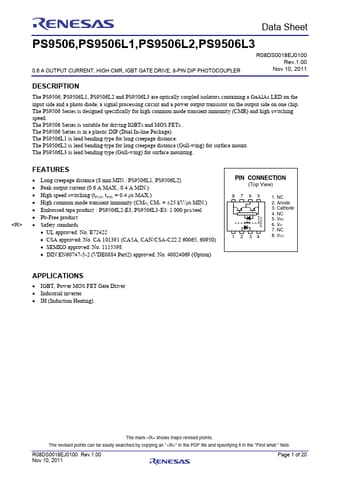

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PS9506L2, PS9506
Manufacturer
Renesas ↗
File Size
336.10 KB
Datasheet
PS9506-Renesas.pdf
Description
PHOTOCOUPLER
Note
This datasheet PDF includes multiple part numbers: PS9506L2, PS9506.
Please refer to the document for exact specifications by model.
