PS9513L3 1Mbps OPEN COLLECTOR OUTPUT

The PS9513, PS9513L1, PS9513L2 and PS9513L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip. The PS9513 is designed specifically for high common mode transient immunity (CMR) and low pulse widt.

PS9513L3 Features

* Long creepage distance (8 mm MIN. : PS9513L1, PS9513L2)

* High common mode transient immunity (CM H, CML = 15 kV/ s MIN.)

* High-speed response (tPHL = 500 ns MAX., tPLH = 750 ns MAX.)

* Maximum propagation delays (t PLH

* Pulse width distortion ( | tPHL

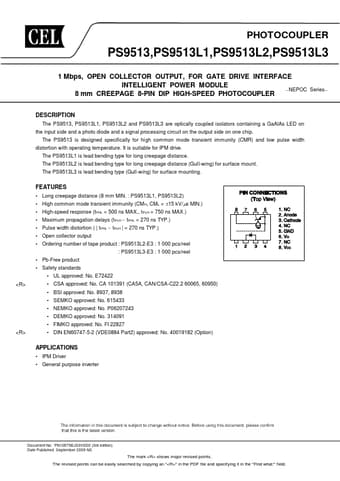

PS9513-CaliforniaEasternLabs.pdf

PS9513L3 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS9513L3, PS9513. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PS9513L3, PS9513

Manufacturer:

California Eastern Labs

File Size:

1.02 MB

Description:

1mbps open collector output.

Note:

This datasheet PDF includes multiple part numbers: PS9513L3, PS9513.
Please refer to the document for exact specifications by model.
