PACVGA100

VGA Port ESD Protection and Termination Network

PACVGA100 Features

* Seven channel ESD protection +15 kV ESD protection per channel, connector Product Description The PACVGA100/101 functions as a transmission line termination and ESD protection device for video applications. It provides 75 ohm parallel terminations for video R, G, and B

PACVGA100 General Description

The PACVGA100/101 functions as a transmission line termination and ESD protection device for video applications. It provides 75 ohm parallel terminations for video R, G, and B lines and series terminations for the Horizontal Sync, Vertical Sync and the two DDC lines which serve as Plug and Play logi.

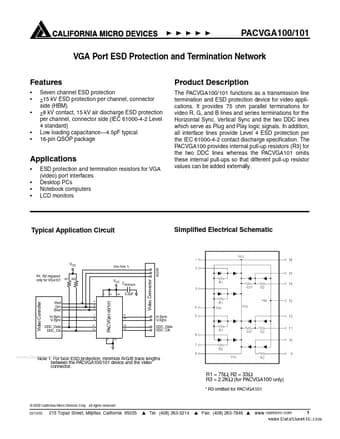

PACVGA100 Datasheet (99.60 KB)

Preview of PACVGA100 PDF

Datasheet Details

Part number:

PACVGA100

Manufacturer:

California Micro Devices

File Size:

99.60 KB

Description:

Vga port esd protection and termination network.
