PACVGA-100

VGA PROTECTION AND TERMINATION NETWORK

PACVGA-100 Features

* • 7 channel ESD protection • 15KV ESD protection (HBM) • 8KV contact, 15KV air discharge ESD protection per IEC 1000-4-2 (Level 4) • Low loading capacitance, 4.5pF typical Application • ESD protection for VGA (video) port in PCs and notebooks. Product Description The PAC VGA-100/101 acts as a tran

PACVGA-100 General Description

The PAC VGA-100/101 acts as a transmission line terminating and ESD protection device. It provides 75 Ohm parallel terminations for the R, G, B lines and series terminations for the Horizontal and Vertical Sync lines and two monitor ID lines which provide ‘Plug and Play’ logic signals. In addition, .

PACVGA-100 Datasheet (231.29 KB)

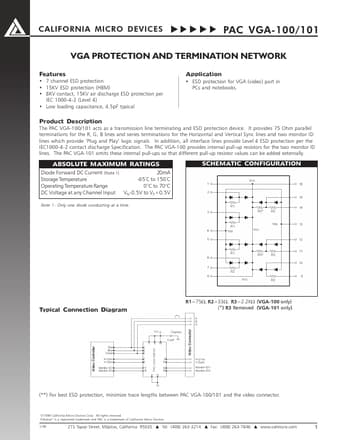

Preview of PACVGA-100 PDF

Datasheet Details

Part number:

PACVGA-100

Manufacturer:

California Micro Devices

File Size:

231.29 KB

Description:

Vga protection and termination network.
