CAT24C08

(CAT24C01 - CAT24C16) Serial EPROM

CAT24C08 Features

* Supports Standard and Fast I2C Protocol

* 1.8 V to 5.5 V Supply Voltage Range

* 16-Byte Page Write Buffer

* Hardware Write Protection for entire memory

* Schmitt Triggers and Noise Suppression Filters 1-Kb, 2-Kb, 4-Kb, 8-Kb and 16-Kb CMOS Serial EEPROM DEVICE DESCRIPTION The C

CAT24C08 General Description

The CAT24C01/02/04/08/16 are 1-Kb, 2-Kb, 4-Kb, 8-Kb and 16-Kb respectively CMOS Serial EEPROM devices organized internally as 8/16/32/64 and 128 pages respectively of 16 bytes each. All devices support both the Standard (100 kHz) as well as Fast (400 kHz) I2C protocol. Data is written by providing a.

CAT24C08 Datasheet (396.21 KB)

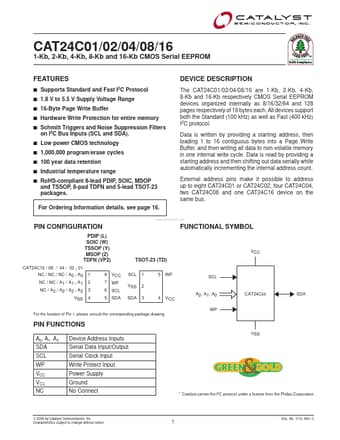

Preview of CAT24C08 PDF

Datasheet Details

Part number:

CAT24C08

Manufacturer:

Catalyst Semiconductor

File Size:

396.21 KB

Description:

(cat24c01 - cat24c16) serial eprom.
