CAT24C02 - CMOS Serial EEPROM

This page provides the datasheet information for the CAT24C02, a member of the CAT24C01 CMOS Serial EEPROM family.

Datasheet Summary

Description

The CAT24C02/04/08/16 are 2 Kb, 4 Kb, 8 Kb and 16

respectively I2C Serial EEPROM devices organized internally as 16/32/64 and 128 pages respectively of 16 bytes each.

All devices support both the Standard (100 kHz) as well as Fast (400 kHz) I2C protocol.

Features

Supports Standard and Fast I2C Protocol.
1.7 V to 5.5 V Supply Voltage Range.
16.
Byte Page Write Buffer.
Hardware Write Protection for Entire Memory.
Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA).
Low power CMOS Technology.
More than 1,000,000 Program/Erase Cycles.
100 Year Data Retention.
Industrial and Extended Temperature Range.
These Devices are Pb.
Free,.

Datasheet Details

Part number	CAT24C02
Manufacturer	ON Semiconductor
File Size	213.92 KB
Description	CMOS Serial EEPROM
Datasheet	CAT24C02 Datasheet

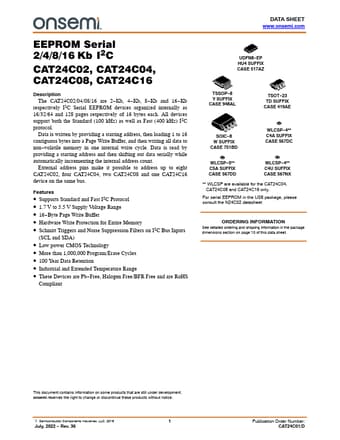

Additional preview pages of the CAT24C02 datasheet.

📁 Similar Datasheet

CAT24C02 - Serial EPROM (Catalyst Semiconductor)

CAT24C021 - Serial CMOS E2PROM / Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

CAT24C022 - Serial CMOS E2PROM / Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

CAT24C023 - Serial CMOS E2PROM / Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

CAT24C02C - 2K-Bit Serial E2PROM (Catalyst Semiconductor)

CAT24C00 - 128-Bit Serial EEPROM (Catalyst Semiconductor)

CAT24C01 - Serial EPROM (Catalyst Semiconductor)

CAT24C01B - 1K-Bit Serial EEPROM (Catalyst Semiconductor)

CAT24C01BPA-1.8TE13 - 1K-Bit Serial EEPROM (Catalyst Semiconductor)

CAT24C03 - I2C Serial EEPROM (Catalyst Semiconductor)

Full PDF Text Transcription

Click to expand full text

EEPROM Serial 2/4/8/16 Kb I2C CAT24C02, CAT24C04, CAT24C08, CAT24C16 Description The CAT24C02/04/08/16 are 2−Kb, 4−Kb, 8−Kb and 16−Kb respectively I2C Serial EEPROM devices organized internally as 16/32/64 and 128 pages respectively of 16 bytes each. All devices support both the Standard (100 kHz) as well as Fast (400 kHz) I2C protocol. Data is written by providing a starting address, then loading 1 to 16 contiguous bytes into a Page Write Buffer, and then writing all data to non−volatile memory in one internal write cycle. Data is read by providing a starting address and then shifting out data serially while automatically incrementing the internal address count.

Published: Jul 22, 2015 |
