CJD340 SURFACE MOUNT SILICON COMPLEMENTARY POWER TRANSISTORS

Central Semiconductor Corp

Description

CJD340 NPN CJD350 PNP SURFACE MOUNT SILICON COMPLEMENTARY POWER TRANSISTORS w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CJD340 and CJD350 are complementary silicon power transistors manufactured in a surface mount package, and designed for hig.

📥 Download Datasheet

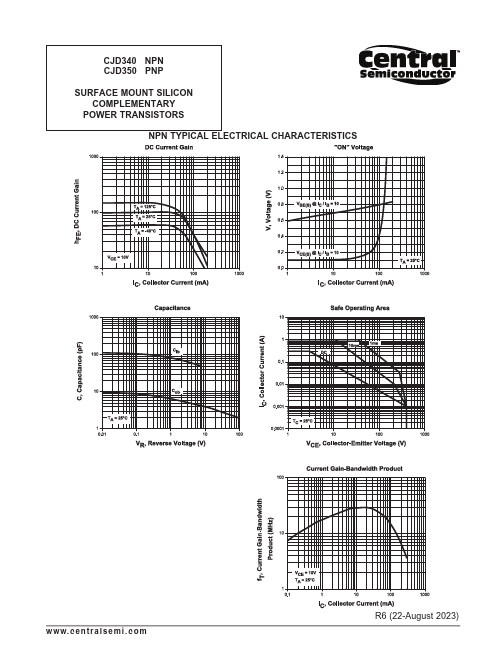

CJD340 Datasheet Preview — Preview of CJD340 PDF

Datasheet Specifications

Part number: CJD340
Manufacturer: Central Semiconductor ↗ Corp
File Size: 1.21 MB
Datasheet: CJD340_CentralSemiconductorCorp.pdf
Description: SURFACE MOUNT SILICON COMPLEMENTARY POWER TRANSISTORS

Applications

* MARKING: FULL PART NUMBER DPAK CASE MAXIMUM RATINGS: (TC=25°C unless otherwise noted) SYMBOL UNITS Collector-Base Voltage VCBO 300 V Collector-Emitter Voltage VCEO 300 V Emitter-Base Voltage VEBO 3.0 V Continuous Collector Current IC 500 mA Peak Collector Current ICM 750 mA
